Product Description
other natural and engineered stones. Human-machine interfaced, the machine is easy to operate. Equipped with advanced
accessories and high-quality materials, it is able to work with ultra-high precision and high stability. It is a monoblock frame
one updated from HLSQ-700 which is easier to intall. This is an economical, efficient and durable stone processingmachine
with strong practicality.

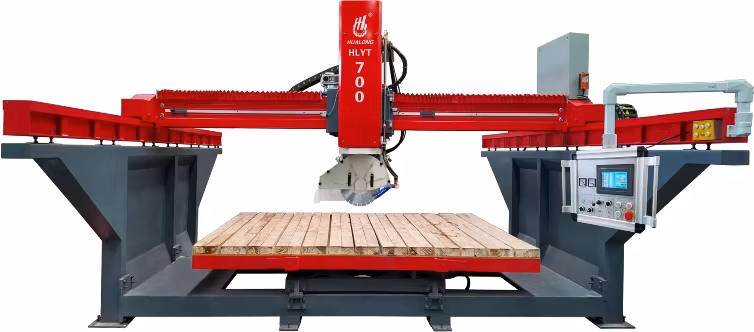

| TECHNICAL DATA FOR HLYT-700 | ||
| Diameter of saw blade | ø400-ø700 | mm |
| Dimension of working platform | 3300x2000 | mm |
| Max. cutting length | 3300 | mm |
| Max. cutting thickness | 180 | mm |
| Max. lifting stroke of cutter | 500 | mm |
| Blade tilting | 45 | n° |
| Worktable rotation | 0-360 | n° |
| Power of main motor | 18.5 | kw |
| Power of tool slide reciproctating motor | 1.5 | kw |
| Power of crossbeam shifting motor | 1.5 | kw |
| Power of hydraulic station motor | 3.5 | kw |
| Gross power | 24.5 | kw |
| Water consumption | 2 | m3/h |
| Gross weight | 6000 | kg |
| Dimensions (L x W x H) | 600x500x360 | cm |
1. Japan Pansonic PLC Control System
Brand: Pansonic
Origin: Japan
PLC control and intuitive interfece make
operaton easy.
Delta touch screen for data setting friendly
for automatic processing.
Both manual and automatic operation available.
2. Remote Control
Wireless pedant control enable quick head movement when the operator is working far from the cotrol position.
3. Laser Reticule Apparatusparatus
Origin: China
Aid for accurate alignment at the beginning of processing.
4. Linear Rail Guide
Oil-immersed V-shape tracks and racks on crossbeam and side beam ensure precise guide movement and long life.
5. Electric & Controll Components
Functions:
1. Straight Cutting,Blade 45° tilting for chamfering.
2. Table tiltting 0° to 85°
3. Table rotation 0°/ 90°;0°/ 360°
4. Laser device for slab positioning accurately.
5. 85 degrees tiltable working table for easy loading slabs and 360 degrees rotatable for ideal cutting.
Main Features:1)easy to operate, good stability and low maintenance cost.
2)Magnetic grid ruler adopted for positing accuracy and ensure high processing precision.3)Hydraulic lifting system is controlled by inverter and the speed is adjust according to stone material.
Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.
Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.
